Honeynet Project
http://project.honeynet.org
Last Modified: 21 April, 2001
Over the past several years the Honeynet Project
has been dedicated to learning and the tools, tactics, and motives of the blackhat
community and sharing the lessons learned. The primary tool used to gather this information is
the Honeynet. The purpose of this paper is to discuss what a Honeynet is, its value to
the security community, how it works, and the risks/issues involved. It is hoped that
the security community can use the techniques discussed here to learn for
themselves about the blackhat community. It is also hoped that the security
community can take the methods and techniques discussed here and improve them,
thereby improving the effectiveness of Honeynets and our ability to learn
more about the enemy. However, we want to be sure that organizations are also
aware of the many risks and issues involved with a Honeynet.
What is a Honeynet
A Honeynet is different. Its two biggest design differences from a classic
honeypot are that:
Value of a Honeynet
For example, one of the primary sources of information a Honeynet can gather
is communication amongst blackhats, such as IRC (Internet Relay Chat). Blackhats
often talk freely amongst each other, revealing their motives, goals,
and actions. We have captured these conversations through the use of
Honeynets, monitoring their every word between each other. We have even
captured real time video shots of blackhats involved in the attacks on our
systems. This gives us insight on how blackhats target and attack systems. A
specific example is the paper Know Your Enemy:
Motives. In this paper we tracked a group of blackhats that had targeted a
specific country. Over a three week period, not only did we learn how they
target and attack systems, but more importantly why. Based on this detailed
information, we can now better understand and protect against this common
threat.
Honeynets also provide an organization intelligence on their own security risks
and vulnerabilities. Honeynets can consist of the same systems and
applications that an organization is using for its production environment.
Risks and vulnerabilities that exist in a Honeynet (which is far more closely
monitored and analyzed) identify risks and vulnerabilities in an organization's
production environment. For example, a company may want to implement a new
webserver interface for credit card use. Both the system and application can
be first tested in a Honeynet environment to identify any unknown risks or
vulnerabilities. We ourselves have learned a great deal testing IDS, Firewall,
and logging systems within the Honeynet environment.
Last, a Honeynet can help an organization develop it's Incident Response
capabilities. In the past two years we have vastly improved our abilities to
detect, react to, recover, and analyze systems that have been compromised. We
have released two works based on these experiences, specifically Know Your Enemy: Forensic
Analysis and The Forensic
Challenge. The advantage one has in analyzing these compromised systems is
you already have most of the answers. You can then treat a compromised system
as a 'challenge', where you test your abilities to determine what happened
using various forensic techniques. You can then compare these results to the
data captured from within the Honeynet. This information can also be used to
determine if any other systems within your production network have been
compromised. Once you have identified the signatures of the blackhat and his
attacks, you can then review your production environment for the same
signatures, identifying compromised systems you did not know about.
These methods have raised some issues
The issue of entrapment:
The issue of privacy:
Until there are more clear judgments at the highest levels of the US
Judicial system, we believe we are following the current laws and
staying within the lines of propriety. (Those outside the US should
consult your own legal agencies for guidance before implementing
a Honeynet.)
How it Works
The Honeynet solves this through simplicity. A Honeynet is a network designed
to be compromised, not to be used for production traffic. Any traffic entering
or leaving the network is suspicious by definition. Any connection initiated
from outside the Honeynet into the network is most likely some type of probe,
attack, or other malicious activity. Any connection initiated from the
Honeynet to an outside network indicates that a system was compromised. This
greatly simplifies the data capture and analysis.
To successfully build a Honeynet, there are two critical elements, data
control and data capture. Data control is the containment of activity, this
means you control what packets can go where. The primary purpose of data
control is to ensure that once a honeypot within the Honeynet is compromised,
it cannot be used to attack other systems outside the Honeynet. The second
element is data capture. Data capture is the capturing of all of the
blackhat's activities, from system keystrokes to transmitted packets. Once
captured, this data is then analyzed to determine the tools, tactics and
motives of the blackhat community.
Data Control
A Honeynet
is a tool for learning. It is a network of production systems designed
to be compromised. Once compromised, this information is captured
and analyzed to learn about the blackhat community. This idea is
similar to honeypots, but there are several differences. A honeypot
is a system designed to be attacked, usually for the purpose of deception
or alerting of blackhat activity. Generally, honeypots are systems that
emulate known vulnerabilities, emulate other systems, or are modified
production systems that create caged environments. Examples of such honeypots
are The Deception
Toolkit, CyberCop
Sting, and Mantrap.
Deception Toolkit is a collection of scripts that emulate known vulnerabilities.
CyberCop Sting is a NT box that emulates the IP stack and inetd of various systems.
Mantrap modifies a Solaris system to create several caged environments. These are all
excellent solutions, however they are limited, focusing primarily on alerting and
deception. (Note, of the three, we feel that Mantrap has the most potential to
also be used as a research tool, however it is has certain limitations).
It is the fact that production systems are used that make a Honeynet unique.
Traditionally the Honeynet Project has used the most commonly found systems
on the Internet, default installations of Linux, Solaris, Windows98, and Windows NT.
Because we use the most common operating systems, the risks and vulnerabilities discovered
in our research apply to the largest percentage of the Internet community.
Traditionally,
information security has been purely defensive. Firewalls, Intrusion
Detection Systems, encryption; all of these mechanisms are used defensively
to protect one's resources. The strategy is to defend one's organization
as best as possible, detect any failures in the defense, and then react
to those failures. The problem with this approach is it purely defensive,
the enemy is on the attack. Honeynets attempt to change that, they
give organizations the ability to take the initiative. The primary
purpose of a Honeynet is to gather intelligence about the enemy, to learn
the tools, tactics, and motives of the blackhat community. By gathering
this intelligence, organizations can better understand their threat, and
how to protect against this threat. Information security has often been
compared to the military, such as the defense of a castle or guerilla warfare.
Regardless of the analogy you choose, organizations can take the initiative
by learning about the enemy, before they strike.
Entrapment is a legal term applied to law enforcement agents who
entice a criminal into engaging in an illegal behavior in which they would not
otherwise engage. We are not law enforcement. We are not acting under the control
of law enforcement, and we don't even have prosecution as an intent. Therefore, we
don't consider setting up a Honeynet to be entrapment. Others would argue that we are
providing an "attractive target", which means we are sticking unsecured systems
on the Internet to entice people to break into them and in turn use them as
stepping stones to attack others. This is also false, as we do not
advertise these systems in any way. If someone finds one of our
systems, compromises it, and uses it for things they shouldn't be
doing, that is because they are actively and knowingly engaging in
this unauthorized activity.
While there are some moral and ethical
issues with this activity (and we wrestle with them internally all the time),
the recently published Searching and Seizing
Computers and Obtaining Electronic Evidence in Criminal Investigations by
the Computer Crime and Intellectual Property Section, Criminal Division, United
States Department of Justice, provides several case references where appellate
judges have ruled against defenses of privacy violations in criminal computer
trespass and fraud cases. Some of these issues include the following:
The primary goal of a Honeynet is to learn about the blackhat community. This is
done by tracking their every move. We create a fishbowl environment where we
can monitor all of the activity that happens within the Honeynet. This
captured activity teaches us the tools, tactics, and motives of the
blackhat community. Traditionally, the greatest problem security professionals
face in identifying and tracking blackhat activity is information overload.
The challenge is determining from vast amounts of information what is production
traffic and what is malicious activity. Tools and techniques such as Intrusion
Detection Systems, host based forensics, or system log analysis attempt to solve
this by using known signatures based on previous attacks to determine what is
production traffic and what is malicious activity. However, information overload,
data pollution, unknown activity, false positives and false negatives can make
analyzing and determining activity extremely difficult.
As stated above, data control is the containment of activity. When we are
dealing with blackhats there is always risk, we must mitigate that risk. We
want to ensure that once compromised, a honeypot cannot be used to harm any
system outside the Honeynet (anything inside the Honeynet is fair game).
However, the challenge is to control the data flow without the blackhat's getting
suspicious. Once a system is compromised, blackhats will often require
Internet connectivity, such as retrieving toolkits, setting up IRC connections,
etc. We have to give them the flexibility to execute these actions, as these
are the very steps we want to learn and analyze. Also, blackhats may become
highly suspicious if they cannot initiate any outbound connections. We made
that very same mistake with our first honeypot. We did not allow any outbound
Internet connections. It took the blackhat only fifteen minutes to figure out
something was wrong, wipe the system drive, and leave the network. So, the
trick is to give the blackhat flexibility to execute whatever they need, but
without allowing them to use the compromised system to attacks others, such as
Denial of Service attacks, system scans, and exploits.

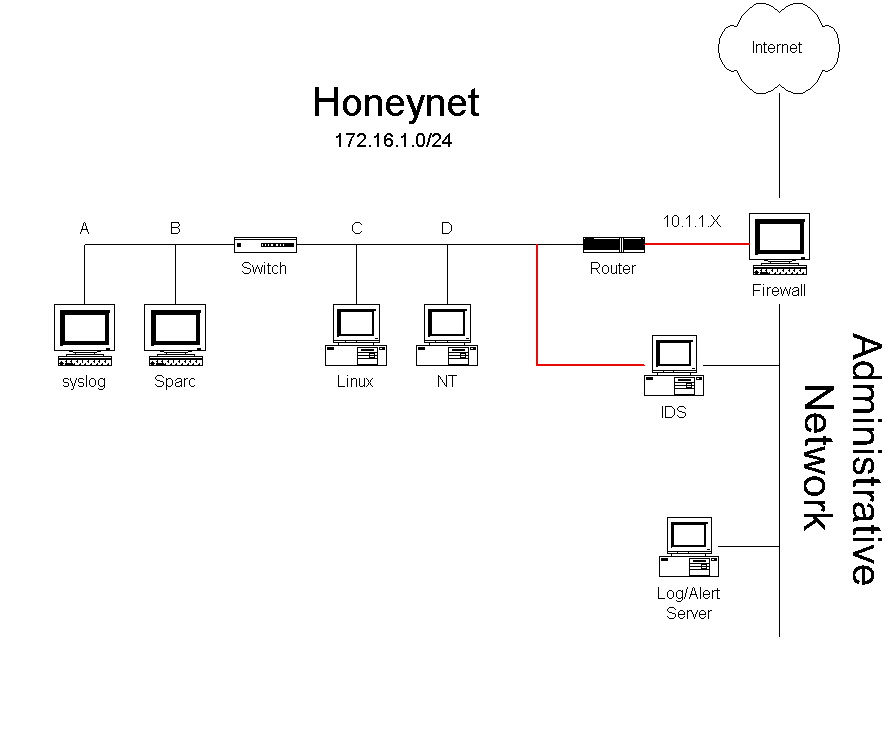

We have designed a
Honeynet that tracks what connections go into and out of a Honeynet. This is
done by placing a firewall in front of the Honeynet, all traffic must go
through the firewall. The firewall keeps track of how many connections are
initiated from a honeypot out to the Internet. Once a honeypot has reached a
certain limit of outbound connections, the firewall will then block any more
attempts. This gives the blackhat the flexibility to execute whatever they
need, while giving us automated protection against abuse. We have found
five to ten outbound connections a good number to keep blackhat's happy,
while protecting others from attacks. This protects the Honeynet from being
used as a platform to scan, probe, or attack most other systems. Some
organizations may not require this functionality. If you can afford to have
someone monitor the Honeynet 24 hours a day, then you can afford to allow
unlimited outbound connections. If a Denial of Service attack is identified,
the person monitoring the Honeynet can simply disable the attack. However, we
have developed a automated means to do this, as we cannot afford 24 hour a day
surveillance. Additionally, a router is placed between the firewall and the
Honeynet. This is done for two reasons.
One, the router hides the firewall. When a honeypot is compromised, blackhats
will find a production router between them and outside networks. This creates
a more realistic environment and obscures the firewall from being discovered.
The second purpose of the router is to act as second access control device.
The router can supplement the firewall, ensuring compromised honeypots are not
used to attack systems outside the Honeynet.
In Diagram
A we have a detailed network map of a Honeynet. This is the very
Honeynet used for research in the Know
Your Enemy series of papers. In the diagram, you see the firewall
separating the Honeynet into three networks. Specifically, the Honeynet,
Internet, and Administrative Network. We will discuss the Administrative
Network when we cover Data Capture. Any packet entering or leaving
the Honeynet has to go through both the Firewall and the router.
The Firewall is our primary tool for controlling inbound and outbound connections.
The router is used to supplement this filtering. Our firewall is
designed to allow any inbound or outbound connection. However, it
limits honeypots within the Honeynet to initiate 5 connections to
the Internet. After the 5th connection, any more connections are
blocked by the firewall. We build this functionality by using a CheckPoint
FW-1 firewall and a shell script that counts how many connections have
been initiated outbound. When the limit is met (in our case 5 connections)
the script configures the firewall to block any more connections from the
compromised honeypot. We have our firewall configured to
send
an alert when this happens, notifying that a compromised honeypot has
been blocked. The specifics of how we configure this functionality, including
source for the script, can be found at
Intrusion Detection
for FireWall-1. You are not limited to FireWall-1,
nor are you limited to use the script we have developed. We only
present these as possible methods to Data Control. For example, the same
functionality can be duplicated using
IPFilter and Swatch.
This same functionality can also be built into IPTables using
Dynamic IPTable Scripts.
The router acts
as a second layer of access controls. We primarily use this to protect
against spoofed or ICMP based attacks. The router allows only packets
with the source IP address of the Honeynet to leave the router. In
our example, this means packets only with source IP of the 172.16.1.0/24
network can leave the Honeynet. This protects against most spoofed
based attacks, such as SYN flooding or SMURF attacks. We also block
ICMP outbound traffic. This was done due to our limited abilities in
automated, stateful ICMP tracking, we hope to change this in the future.
Other organizations do not have to limit ICMP in such a manner. Limiting
ICMP protects against attacks such as SMURF, network mapping, and Ping
of Death (yes, we still see that in the wild). Below is the ACL we
use on our router, notice the large amounts of ICMP the router has dropped:
router#show ip access-list 100
We have found
the combination of both the firewall and the router to make an extremely
effective technique of controlling outbound traffic. We have found
this to be effective in that it gives blackhats the flexibility to execute
most of what they need to accomplish, while limiting attacks that can be
launched against other systems. To the best of our knowledge, these
security measures have not been defeated. A variety of Denial of
Service attacks have been attempted from the Honeynet, including SYN Flooding,
SMURF, and Ping of Death, all have been detected and blocked. Also, a variety
of scanners or 'auto rooters' have been launched from the Honeynet, once again
these have been detected and blocked. However, it is most likely only a matter
of time before someone defeats these measures. Keep in mind, there is always
risk when dealing with the blackhat community.
Data Capture
The first layer
of logging activity are is the firewall. Previously, we discussed
how we can use the firewall to control data. This same firewall can
be used to capture data. The firewall logs all connections initiated to
and from the Honeynet. This information is critical, as all connections
are suspicious. We have designed our firewall not only to log all
connections, but to alert us whenever an connection is attempted.
For example, if someone were to attempt a telnet connection to a system
in the Honeynet, the firewall would log and
alert us to the event.
This is extremely useful for tracking scanning patters.
Another use is of backdoors or proprietary ports. Most exploits create
a shell or backdoor on a system. These backdoors are easy to detect
when the firewall alerts you to a connection on a system on some random
high port. The firewall also alerts us when a honeypot on the Honeynet
initiates an outbound connection. The firewall once again logs and
alerts us to this activity. However, this alert is a higher priority,
as it indicates a system was compromised. Such an alert would be
sent by both email and pager.
Another critical
layer is the IDS system, it has two purposes. The first, and by far most
important, is to capture all network activity. Its primary job is to capture
and record every packet that hits the wire. If you refer to
DiagramA, you will see
that our IDS system is on a switch physically shared by all other systems
on the Honeynet. The IDS system resides on a 'port monitoring' port,
so it can record all network activity. These records are then used to analyze
the blackhat's activities. The second function of the IDS system is to
alert us to any suspicious activity. Most IDS systems have a database
of signatures, when a packet on the network matches a signature, an alert
is generated. This function is not as critical for a Honeynet, as
any activity is considered suspicious by nature. However, IDS systems
can give detailed information about a specific connection.
The Honeynet Project currently uses the Open Source IDS snort.
We have configured snort
to capture all network activity to a binary log file. These binary logs are critical,
as they capture every packet that enters and leaves the Honeynet. In addition, snort
logs all ASCII communication (such as
keystrokes from an FTP session)
to session breakout files. Both binary and ASCII logs are logged to their own directory
for each day. This makes it much easier to review and analyze logs on a daily basis.
To accomplish this daily logging, we have configured a
startup script
which is executed by cron every day, restarts snort and logs to a new directory. Last, all
snort alerts are
forwarded to the syslog server. These alerts are then logged to /var/log/messages, which
is monitored by Swatch.. Swatch
monitors this log file in real time and does two things. First, it identifies any snort
alerts and forwards them via email to a system administrator for real time warning. Second,
Swatch archives all snort alerts to a simple text file for archiving. We use the following
swatchrc configuration file
for this functionality. Last, we use
snortsnarf to create a simple,
interactive database to query and review the archived snort alerts. This is excellent
for trend analysis or in-depth research.
A third layer
are the systems themselves, we want to capture all system and user activity
that occurs on a system. The first method for this is have all system
logs not only log locally, but to a remote log server. For unix systems
and most network devices, this is simply done by adding an entry for a
remote syslog server in the configuration file. For Window based
systems there are third party applications that will remotely log information.
Also, system logs can be written to a NFS or SMB share on the remote log
server. Often NT may not have the capability to write system information
to syslog, but can write it to a network file system. This way, critical
system information such as process activity, system connections, and attempted
exploits are safely copied to a remote system. We do not want to
make any attempt to hide the use of a remote syslog server. If the
blackhat detects this, the worse they can do is disable syslogd (which
is standard behavior for most blackhats). This means we will no longer
have continued logs, however we will at least have information on how they
gained access and from where.
More advance
blackhats will attempt to compromise the remote syslog server in an attempt
to cover their tracks. This is exactly what we want to occur.
The syslog server is a normally a far more secured system, this means
for a blackhat to successfully take control of such a system, they will
have to use more advance techniques, which we will capture and learn from.
If the syslog server is compromised, we have lost nothing. Yes, the
blackhat can gain control of the system and wipe the logs. However,
do not forget, our IDS system that is on the network passively captured
and recorded all of the logging activity that happened on the network.
In reality, the IDS system acts as a second remote log system, as it passively
captured all the network data.
A second method
to capturing system data is to modify the system to
capture keystrokes
and screen shots and remotely forward that data. The Honeynet Project
is currently testing several tools that have this functionality.
The first is a
modified version of bash. This shell, developed by
Antonomasia,
can be used to replace the system binary /bin/bash. The trojaned shell forwards
the user's keystrokes to syslogd, which is then forwarded to a remote syslog server.
A second option is a modified
version of TTY Watcher. This kernel module captures both user
keystrokes and screen captures and forward this information over a non-standard
TCP connection. There are a variety of other options to this functionality.
The Honeynet Project encourages the security community to code and develop
these options.
Care, Feeding and Risk
Also, there are risks involved with building and implementing a Honeynet. We
have blackhats attacking and compromising our systems. By setting up a network
to be compromised, we expose ourselves, and others, to risk. You assume a
responsibility to ensure that the Honeynet, once compromised, cannot be used to
attack or harm other systems. However, with an environment like this, there is
always the potential for something to go wrong. We have implemented a variety
of measures to mitigate this risk. However, it is quite possible for a blackhat
to develop a method or tool that allows them to bypass our access control
methods. Also, one needs to be constantly testing and updating the environment
to ensure control measures are working effectively. Never underestimate the
creative power of the blackhat community. The use of a firewall, routers, and
other techniques helps mitigate the risk of the Honeynet being used to damage
other systems. However, there is still risk.
There is also the potential that data capture can be bypassed. Blackhats are
continually developing methods to avoid detection, such as anti-IDS techniques
or encryption. For example, Dug Song has developed a toolkit called fragrouter that is designed
to bypass Intrusion Detection Systems. It fragments packets in unique
patterns, making it difficult for IDS systems to detect attack signatures.
Rain Forest Puppy has developed a scanning tool called whisker, this
tool bypasses data capture by segmenting or modifying signatures. Most data
capture systems can detect these techniques. However, there may be new ones
that we do not know about and will bypass whatever methods we use. These are
just several examples of how a Honeynet's security measures can be bypassed.
Keep in mind that no matter what security measures we put in place, there is
risk. Specifically the risk of someone smarter then us will come along.
Last, Honeynets will not solve your security problems. We highly recommend
that organizations focus on best practices first, such as strong
authentication, use of encrypted protocols, reviewing system logs, and secure
system builds. By prioritizing on proper policies and procedures,
organizations can greatly reduce risk. Honeynets can assist organization only
after these best practices have been met, and are continued to be followed.
Conclusion
Extended IP access list 100
deny icmp any any (5446314 matches)
permit ip 172.16.1.0 0.0.0.255 any (66372 matches)
deny ip any any log (59990 matches)
Data capture
is the capturing of all of the blackhat's activities. It is these
activities that are then analyzed to learn the tools, tactics, and motives
of the blackhat community. The challenge is to capture as much data
as possible, without the blackhat knowing their every action is captured.
This is done with as few modifications as possible, if any, to the honeypots.
Also, data captured cannot be stored on locally on the honeypot.
Information stored locally can potentially be detected by the blackhat,
alerting them the system is a Honeynet. The stored data can also
be lost or destroyed. Not only do we have to capture the blackhats
every move without them knowing, but we have to store the information remotely.
The key to this is capturing data in layers. You cannot depend on
a single layer for information. You gather data from a variety of
resources. Combined, these layers then allow you to paint the big picture.
We will now discuss these layers and there uses.
Honeynets are not a fire and forget solution, they require constant maintenance
and vigilance. For maximum effectiveness, you will want to detect and react to
incidents as soon as possible. By watching the blackhat activities in real time,
you can maximize your data capture and analysis capabilities. Also, to detect the unknown,
you are required to constantly review in depth suspicious activity. This requires extensive
time and analysis capabilities. For example, for every 30 minutes a blackhat spends
on a compromised honeypot, you can expect to spend 30-40 hours analyzing the data.
Constant maintenance is also required to ensure operability of your Honeynet.
If something goes wrong (and something always does) this can cause a failure within
the Honeynet Your alert processes may die, disks can fill, IDS signatures become out
of date, configuration files become corrupted, system logs need to be reviewed, firewalls
need to be updated and patched. These represent just some of the constant care and
feeding that is required for a successful Honeynet. Your work has only begun when you
implement a Honeynet.
Honeynet is a tool designed to gather intelligence, specifically the tools, tactics
and motives of the blackhat community. They share the advantages of honeypots,
specifically tools of deception or alerting, however their primary function is for
learning. There are two design differences between honeypots and a Honeynet. The
first difference is a Honeynet is not a single system, but a network of multiple systems and
applications. The second difference is Honeynets are production systems,
the same systems found on the Internet today, neither the systems nor vulnerabilities
are emulated. This combination makes Honeynets an excellent tool to learn.
However, Honeynets require a tremendous amount of administrative overhead. The Honeynet
administrator has the responsibility of ensuring that no other systems will
be attacked from the compromised Honeynet. Without proper administration, risks of use
may outweigh the reward. This tool is not the security panacea, and may not
be suitable the solution for every organization. The Honeynet Project highly
recommends that organizations first focus on securing their organization, such as patching
systems or disabling services. Once secured, organizations may then be able to use Honeynets
as a powerful tool to take the initiative and learn more about the enemy and themselves.
